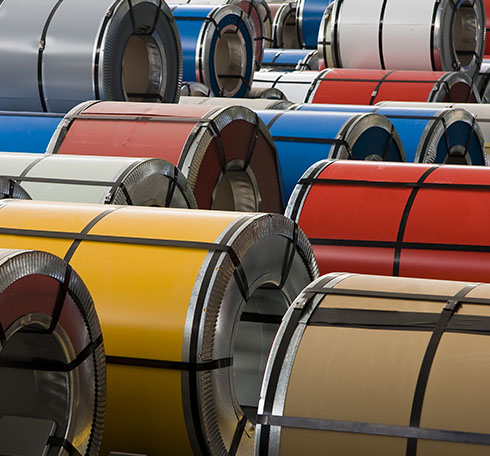

Aluzinc Asia offers pre-painted steel to its clients with excellent durability, corrosion resistant and excellent tensile strength. Keeping in view the dynamic needs of our esteemed clients we ensure that the quality of the product we supply is in compliance with the internationally approved parameters of quality. Our products are thoroughly checked and tested on a number of standards to ensure excellent formability in addition to long life functionality and resistant to wide range of temperatures.
Base metal | Cold rolled,galvanized,galvanized-aluminium, line can also coat stainless steel and aluminium |
Thickness | 0.20 TO 1.20 mm |
Width | 700 TO 1400 mm |
Coil id | 508 & 610 mm |
Coil od | 1700 mm max |
Coil wt | 12 MT Max* *with ref. to width of coil |
Substrate Hardness | Soft, Medium,hard |
YS(Mpa) | 240 -700 |
Coating Thickness | Z 90-220 gsm, AZ 90-150 gsm. |
Paint Systems | Primers: Epoxy, PU TOP Coat: Polyester (RMP), Silicon Modified Polyester (SMP), Poly Vinyl Di Flouride (PVDF), Back Coat: Epoxy, Polyester, PU |
Colours | As Per RAL shades/Customer requirements. |
Surface Finishes | Glossy and Matte |
Coating Thickness | 20 - 40 microns(Total coating thickness TOP,BOTTOM,PRIMER) |
Guard Film(Optional) | 40 micron |
Cut to length | 200mm-5000mm |
Slits | 37mm and above |
Standards | JIS G -3312,ASTM A -755 ,EN -10169, IS -14246 |
For PPGL | Astm a 755m,with substrate astm a792 m |
Packing | Standard Packing |
